单元测试 - SpringBoot2+H2+Mockito实战
大约 5 分钟
单元测试 - SpringBoot2+H2+Mockito实战
提示
在真实的开发中，我们通常是使用SpringBoot的，目前SpringBoot是v2.4.x的版本（SpringBoot 2.2.2.RELEASE之前默认是使用 JUnit4，之后版本默认使用Junit5）；所以我们写个基于SpringBoot2.4+H2的内存库的简单例子，同时加点必要的单元测试。
为何H2会被用来做单元测试
一个 Junit单元测试的流程包括
- 初始化数据
- 执行测试
- 销毁数据
在真实的测试代码开发中，有几类问题会造成困扰：
- 数据库环境的搭建
- 搭建一套完整的数据库往往比较耗时，然而一旦将数据库配置加入测试范围，就必须长期维护其稳定性；
- 这同时也会带来代码库同步的困扰。
- 保证数据库的"干净"
大多数情况下，每个测试用例在启动前(初始化数据)都期望数据库是"干净"的状态；然而使用真实的数据库却很难保证这点，原因是：
- 多个应用可能会共享一个物理数据库；
- 测试用例在销毁数据时很难保证完全清除，可能一次意外的调试也会产生垃圾数据；
H2内存数据库很好的解决了上述问题，本身作为嵌入式数据库并不需要额外的看护成本；在程序退出时，所有数据都能保证完全清除 。
SpringBoot对单测试的差异
SpringBoot 2.2.2.RELEASE之前默认是使用 JUnit4，之后版本默认使用Junit5。
Springboot+junit4:
@RunWith(SpringRunner.class)
@SpringBootTest
public class SpringBootQuickStartApplicationTests {
private MockMvc mvc;
@Before
public void setUp() throws Exception {
mvc = MockMvcBuilders.standaloneSetup(new UserController()).build();
}
@Test
public void contextLoads() throws Exception {
RequestBuilder request = null;
request = MockMvcRequestBuilders.get("/")
.contentType(MediaType.APPLICATION_JSON);
mvc.perform(request)
.andExpect(MockMvcResultMatchers.status().isOk())
.andDo(MockMvcResultHandlers.print())
.andReturn();
}
}
Springboot+junit5:
@SpringBootTest
// 使用spring的测试框架
@ExtendWith(SpringExtension.class)
class SpringbootQuickStartApplicationTests {
private MockMvc mockMvc;
@BeforeEach // 类似于junit4的@Before
public void setUp() throws Exception {
mockMvc = MockMvcBuilders.standaloneSetup(new UserController()).build();
}
@Test
void contextLoads() throws Exception {
RequestBuilder request = null;
request = MockMvcRequestBuilders.get("/")
.contentType(MediaType.APPLICATION_JSON);
mockMvc.perform(request)
.andExpect(MockMvcResultMatchers.status().isOk())
.andDo(MockMvcResultHandlers.print())
.andReturn();
}
}
项目实践
Spring Boot 2.4.2 + H2 + Lombok + Spring Boot Test (默认包含了 Junit5 + Mockito)。
Demo程序准备
- pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.4.2</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>tech.pdai</groupId>
<artifactId>java-springboot-unit5</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>java-springboot-unit5</name>
<description>java-springboot-unit5</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<configuration>
<excludes>
<exclude>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</exclude>
</excludes>
</configuration>
</plugin>
</plugins>
</build>
</project>
- application.yml
spring:
datasource:
platform: h2
driverClassName: org.h2.Driver
url: jdbc:h2:mem:testdb;MODE=MYSQL;DB_CLOSE_DELAY=-1;DATABASE_TO_UPPER=false
username: pdai
password: pdai
schema: classpath:db/schema/user-schema.sql
data: classpath:db/data/user-data.sql
initialization-mode: always
h2:
console:
settings:
trace: true
web-allow-others: true
enabled: true
path: /h2-console
jpa:
show-sql: true
hibernate:
ddl-auto: update
generate-ddl: false
open-in-view: false
- 数据库文件准备
schema
DROP TABLE IF EXISTS user;
CREATE TABLE user (
id INT NOT NULL AUTO_INCREMENT PRIMARY KEY,
name varchar(35),
phone varchar(35)
);
data
insert into user(id,name,phone) values(1,'pdai','123456');
insert into user(id,name,phone) values(2,'zhangsan','123456');
- entity
package tech.pdai.springboot2unit5.entity;
import lombok.AllArgsConstructor;
import lombok.Getter;
import lombok.NoArgsConstructor;
import lombok.Setter;
import javax.persistence.*;
/**
* User.
*/
@Entity
@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@Table(name = "user")
public class User {
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Integer id;
@Column
private String name;
@Column
private String phone;
}
- dao
package tech.pdai.springboot2unit5.dao;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;
import tech.pdai.springboot2unit5.entity.User;
/**
* user dao.
*/
@Repository
public interface UserRepository extends JpaRepository<User, Integer> {
}
- service
package tech.pdai.springboot2unit5.service;
import tech.pdai.springboot2unit5.entity.User;
import java.util.List;
/**
* user service.
*/
public interface IUserService {
/**
* find all user.
*
* @return list
*/
List<User> findAll();
}
package tech.pdai.springboot2unit5.service.impl;
import org.springframework.stereotype.Service;
import tech.pdai.springboot2unit5.dao.UserRepository;
import tech.pdai.springboot2unit5.entity.User;
import tech.pdai.springboot2unit5.service.IUserService;
import java.util.List;
/**
* User service impl.
*/
@Service
public class UserServiceImpl implements IUserService {
/**
* user dao.
*/
private final UserRepository userRepository;
/**
* init.
*
* @param userRepository2 user dao
*/
public UserServiceImpl(final UserRepository userRepository2) {
this.userRepository = userRepository2;
}
/**
* find all user.
*
* @return list
*/
@Override
public List<User> findAll() {
return userRepository.findAll();
}
}
- Controller
package tech.pdai.springboot2unit5.controller;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import tech.pdai.springboot2unit5.entity.User;
import tech.pdai.springboot2unit5.service.IUserService;
import java.util.List;
/**
* User controller.
*/
@RestController
public class UserController {
/**
* user service.
*/
private final IUserService userService;
/**
* init.
*
* @param userService2 user service
*/
public UserController(final IUserService userService2) {
this.userService = userService2;
}
/**
* find user list.
*
* @return list
*/
@GetMapping("user/list")
public ResponseEntity<List<User>> list() {
return ResponseEntity.ok(userService.findAll());
}
}
测试类
在实际的项目中可以使用profile来区分测试ut，使用test profile(包含H2内存库)，真实环境使用MySQL或其它。
- main
package tech.pdai.springboot2unit5;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.context.annotation.Profile;
import org.springframework.test.context.junit.jupiter.SpringExtension;
import tech.pdai.springboot2unit5.service.IUserService;
import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertFalse;
/**
* A way to test from H2.
* <p>
* Just a demo, and change profile to 'test' for H2, and 'product' for MySQL.
*/
@Profile("default")
@ExtendWith(SpringExtension.class)
@SpringBootTest
class JavaSpringbootUnit5ApplicationTests {
@Autowired
IUserService userService;
@Test
@DisplayName("Integration test")
void contextLoads() {
assertFalse(userService.findAll().isEmpty());
assertEquals("pdai", userService.findAll().get(0).getName());
}
}
- controller
mockMvc
package tech.pdai.springboot2unit5.controller;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.mockito.Mockito;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.boot.test.mock.mockito.MockBean;
import org.springframework.http.MediaType;
import org.springframework.test.context.junit.jupiter.SpringExtension;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.request.MockMvcRequestBuilders;
import tech.pdai.springboot2unit5.entity.User;
import tech.pdai.springboot2unit5.service.IUserService;
import java.util.Collections;
import static org.mockito.Mockito.times;
import static org.mockito.Mockito.verify;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;
/**
* user controller test - use mockito.
*/
@ExtendWith(SpringExtension.class)
@WebMvcTest(value = UserController.class)
class UserControllerTest {
@Autowired
private MockMvc mockMvc;
@MockBean
private IUserService userService;
/**
* test find all user.
*
* @throws Exception exception
*/
@Test
@DisplayName("Test findAll()")
public void list() throws Exception {
Mockito.when(userService.findAll()).thenReturn(
Collections.singletonList(new User(1, "pdai.tech", "1221111")));
mockMvc.perform(MockMvcRequestBuilders.get("/user/list")
.accept(MediaType.APPLICATION_JSON))
.andExpect(status().isOk());
verify(userService, times(1)).findAll();
}
}
- service
package tech.pdai.springboot2unit5.service.impl;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.mockito.Mock;
import org.mockito.Mockito;
import org.springframework.test.context.junit.jupiter.SpringExtension;
import tech.pdai.springboot2unit5.entity.User;
import java.util.Collections;
import java.util.List;
import static org.junit.jupiter.api.Assertions.assertFalse;
import static org.mockito.Mockito.times;
import static org.mockito.Mockito.verify;
@ExtendWith(SpringExtension.class)
class UserServiceImplTest {
@Mock
private UserServiceImpl userService;
@Test
public void findAll() {
//Given
Mockito.when(userService.findAll()).thenReturn(
Collections.singletonList(new User(1, "pdai.tech", "1221111")));
//When
List<User> userDtoList = userService.findAll();
//Then
assertFalse(userDtoList.isEmpty());
verify(userService, times(1)).findAll();
}
}

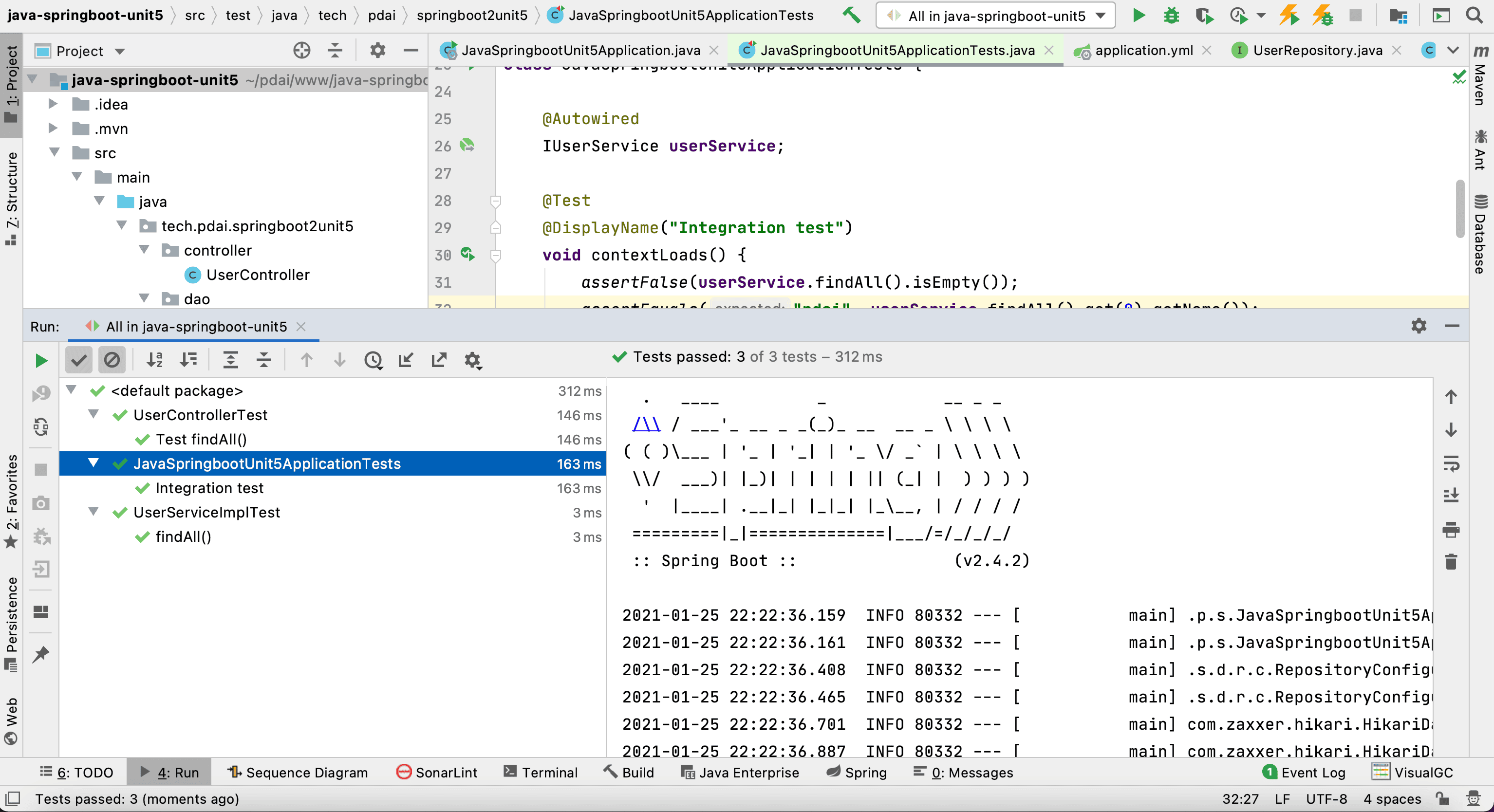

- 测试结果
Util测试
如果包含静态util的测试还可以加PowerMokito.
具体可以参考： [ 测试结合powermock支持静态方法 ](/md/develop/ut/dev-ut-x- mockito.html#%E6%B5%8B%E8%AF%95%E7%BB%93%E5%90%88powermock%E6%94%AF%E6%8C%81%E9%9D%99%E6%80%81%E6%96%B9%E6%B3%95)
