SpringBoot进阶 - 自定义starter

张启忻大约 3 分钟

SpringBoot进阶 - 自定义starter

提示

如何将自己的模块封装成starter， 并给其它springBoot项目使用呢？ 本文主要介绍在Springboot封装一个自定义的Starter的一个Demo，从创建一个模块->封装starter->使用。

思路

创建模块，封装starter，最后使用starter.

  • 1 - 创建一个Demo Project，模拟一个需要被封装的DemoModule模块，其中核心方法为exeModuleMethod
  • 2 - 通过starter封装可以直接初始化DemoModule的实例到Spring容器
  • 3 - 在Maven中引入starter，且在yml中配置相应到参数即可直接初始化DemoModule的实例
  • 4 - 在应用中注入DemoModule即可使用其exeModuleMethod方法

新建项目

  • pom.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.1.7.RELEASE</version>
            <relativePath/> <!-- lookup parent from repository -->
        </parent>
        <groupId>com.pdai</groupId>
        <artifactId>demo</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <name>demo</name>
        <description>Demo project for Spring Boot</description>

        <properties>
            <java.version>1.8</java.version>
        </properties>

        <dependencies>
            <!-- 注意不要引入Springboot模块-->
        </dependencies>

        <build>

        </build>

    </project>

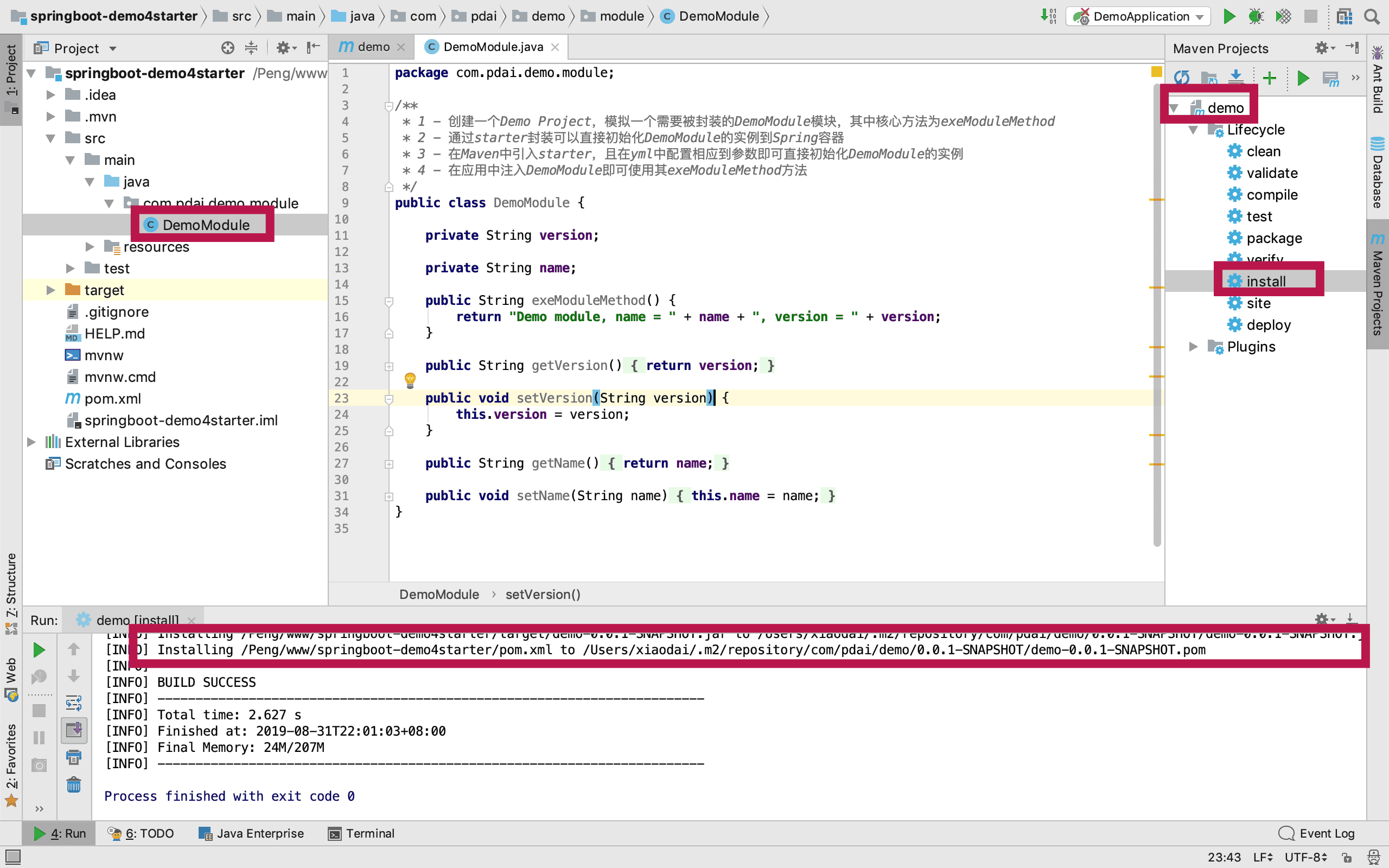

  • 创建一个测试模块

    package com.pdai.demo.module;

    /**
     *
     */
    public class DemoModule {

        private String version;

        private String name;

        public String exeModuleMethod() {
            return "Demo module, name = " + name + ", version = " + version;
        }

        public String getVersion() {
            return version;
        }

        public void setVersion(String version) {
            this.version = version;
        }

        public String getName() {
            return name;
        }

        public void setName(String name) {
            this.name = name;
        }
    }
  • install

封装Starter

  • 创建项目 - pom.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.1.7.RELEASE</version>
            <relativePath/> <!-- lookup parent from repository -->
        </parent>
        <groupId>com.pdai</groupId>
        <artifactId>demo-springboot-starter</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <name>demo-springboot-starter</name>
        <description>Demo project for Spring Boot</description>

        <properties>
            <java.version>1.8</java.version>
        </properties>

        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-autoconfigure</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-configuration-processor</artifactId>
                <optional>true</optional>
            </dependency>
            <dependency>
                <groupId>com.pdai</groupId>
                <artifactId>demo</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <scope>test</scope>
            </dependency>
        </dependencies>

    </project>
  • Properties

    package com.pdai.demospringbootstarter;

    import org.springframework.boot.context.properties.ConfigurationProperties;

    @ConfigurationProperties(prefix = "com.pdai")
    public class DemoProperties {
        private String version;
        private String name;

        public String getVersion() {
            return version;
        }

        public void setVersion(String version) {
            this.version = version;
        }

        public String getName() {
            return name;
        }

        public void setName(String name) {
            this.name = name;
        }
    }
  • AutoConfiguration

    package com.pdai.demospringbootstarter;

    import org.springframework.boot.context.properties.EnableConfigurationProperties;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;

    @Configuration
    @EnableConfigurationProperties(DemoProperties.class)
    public class DemoAutoConfiguration {

        @Bean
        public com.pdai.demo.module.DemoModule demoModule(DemoProperties properties){
            com.pdai.demo.module.DemoModule demoModule = new com.pdai.demo.module.DemoModule();
            demoModule.setName(properties.getName());
            demoModule.setVersion(properties.getVersion());
            return demoModule;

        }
    }
  • spring.factory

在META-INF下创建spring.factory文件


    org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
    com.pdai.demospringbootstarter.DemoAutoConfiguration
  • install

使用starter

只需要在application.yml中

  • application.yml

    com:
        pdai:
            name: DEMO
            version: v1
  • pom.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.1.7.RELEASE</version>
            <relativePath/> <!-- lookup parent from repository -->
        </parent>
        <groupId>com.pdai</groupId>
        <artifactId>demo-usage</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <name>demo-usage</name>
        <description>Demo starter usage</description>

        <properties>
            <java.version>1.8</java.version>
        </properties>

        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
            </dependency>
            <dependency>
                <groupId>com.pdai</groupId>
                <artifactId>demo-springboot-starter</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <scope>test</scope>
            </dependency>
        </dependencies>

        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                </plugin>
            </plugins>
        </build>

    </project>
  • app

    package com.pdai.demo.usage;

    import com.pdai.demo.module.DemoModule;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.RestController;

    @SpringBootApplication
    @RestController
    public class DemoUsageApplication {

        public static void main(String[] args) {
            SpringApplication.run(DemoUsageApplication.class, args);
        }

        @Autowired
        private DemoModule demoModule;


        @GetMapping("demo")
        public String demo(){
            return demoModule.exeModuleMethod();
        }
    }
  • 输出

http://localhost:8080/demo


    Demo module, name = DEMO, version = v1

代码实例

@see https://github.com/realpdai/springboot-starter-demo
